List of Ordering Model Numbers
| Sort | Product name | Model number | Remarks (Minimum order) |
| Main unit | Optical Encephalography | Spectratech OEG-16 | 1 set |
| Fill-in | Sensor part (L, R 1.5m) | Spectratech OEG-16-01-0115 | L, R 1 each Cable length 1.5m |
| Supplies | Sensor band | Spectratech OEG-16-01-02 | 1 (1 set attached to Main unit as standard) |
| Supplies | Head band | Spectratech OEG-16-01-03 | 1 (1 set attached to Main unit as standard) |
| Fill-in | Sensor cover | Spectratech OEG-16-01-05 | 12 (12 sets attached to Main unit as standard) |
| Fill-in | Optical phantom | Spectratech OEG-16-02 | 1 (1 set attached to Main unit as standard) |
| Fill-in | Carrying bag | Spectratech OEG-16-03 | 1 (1 set attached to Main unit as standard) |
| Fill-in | BNC cable for external signal input | Spectratech OEG-16-04 | 2 (2 sets attached to Main unit as standard) |
| Fill-in | BOX for manual event trigger input | Spectratech OEG-16-05 | 1 (1 set attached to Main unit as standard) |
| Option | Adhesive band | Spectratech OEG-16-01-04 | 6 sheets |
| Option | Sensor adaptor | Spectratech OEG-16-01-06 | 12 sets |
| Option | Velcro tape kit | Spectratech OEG-16-01-0101 | 6 kinds of velcro tapes in length enclosed |
| Option | Sensor band (26mm type) | Spectratech OEG-16-01-0226 | 1 Alignment in 26mm interval |
| Option | Sensor Band Self-made Kit | Spectratech OEG-16-01-0601 | １ |
| Option | Trigger distributor 1IN5OUT | Spectratech OEG-16-101 | １ |
| Option | Event distributor 1IN5OUT | Spectratech OEG-16-102 | １ |
| Option | Carrying case | Spectratech OEG-16-201 | １ |

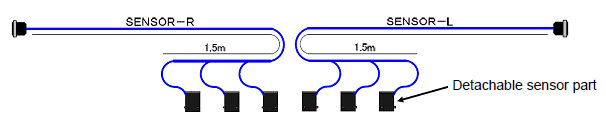

Spectratech OEG-16-01-0115 Sensor Part (L, R) 1.5m
It is the same as the sensor that is attached to Main unit of SpectratechOEG-16. The cable length is 1.5m.

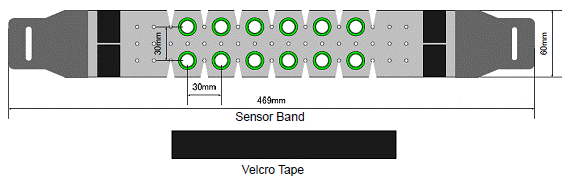

Spectratech OEG-16-01-02 Sensor Band
The sensor band is a part that touches the live body directly. Please use a new sensor band when it has become dirty with sweat, etc.

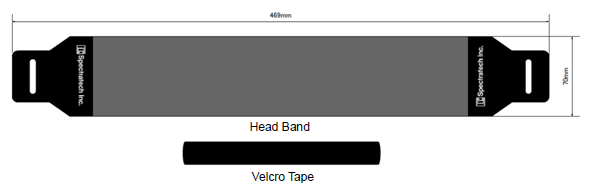

Spectratech OEG-16-01-03 Head band
The headband is made of a very soft material (neoprene) not to apply a strain to the live body as far as possible. Please be understood that it is supplies though it can be used long if it is used with caution.
Spectratech OEG-16-01-05 Sensor Cover
It is the cover to protect the optical surface of Spectratech OEG-16-01 Sensor. The optical side (light-receiving part and light-emitting part) can be safely maintained if it has been mounted to the sensor cover when the sensor is not used. Please order when having lost it though it is attached to Main unit as needed as standard.

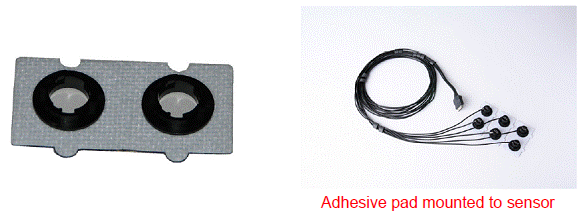

Spectratech OEG-16-01-04 Adhesive Pad
Experiment can be done by having the sensor adhere to an interested part of the live body with this adhesive pad not using Spectratech OEG-16-01 Head module. The adhesive force is not so strong because it is the same material as the adhesive pad used for electrocardiograph. When using it on the frontal lobe, please fasten it firmly with SpectratechOEG-16-01-03 Head band after it was mounted. Since it adheres to the live body, it will increase the possibility that the experiment can be conducted even in somewhat intense exercise condition though it might not be so practicable. It is possible to use it also when experimenting to measure on the belly or the arm, etc.

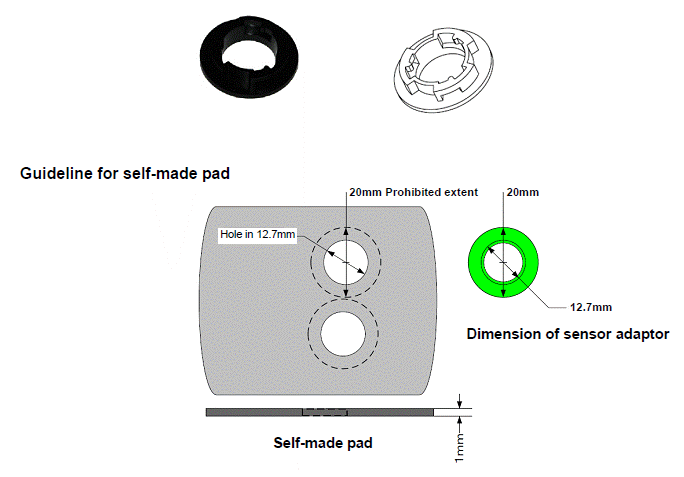

Spectratech OEG-16-01-06 Sensor Adaptor
This part is not included in SpectraetchOEG-16 Main unit as standard. Please use the sensor adaptor when the sensor of Spectratech OEG-16-01 is mounted to a self-made pad, etc. for experiments. After making a hole in 12.7mm at the self-made pad side, the sensor adaptor can be mounted to the hole. About 1mm of the thickness of the bud is suitable.
About 1mm is suitable in thickness of the pad. The sensor adaptor can be adhered to the self-made pad with commercially available Aron Alpha (Krazy Glue) etc. though it might depend on the self-made pad material. (Material of the sensor adaptor is ABS resin.)

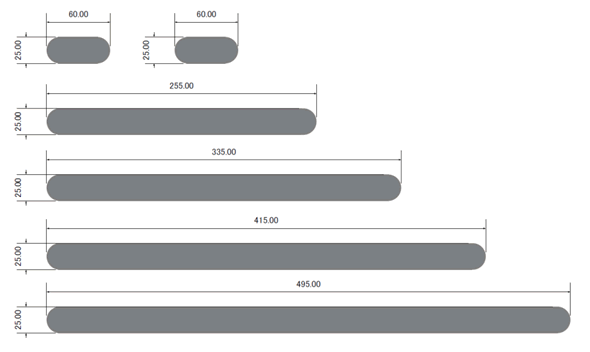

Spectratech OEG-16-01-0101 Velcro Tape Kit
It is a set of 6 kinds of Velcro tapes in length. It can be use for both the sensor band and the headband. Please use it according to the size of each examinee’s head.

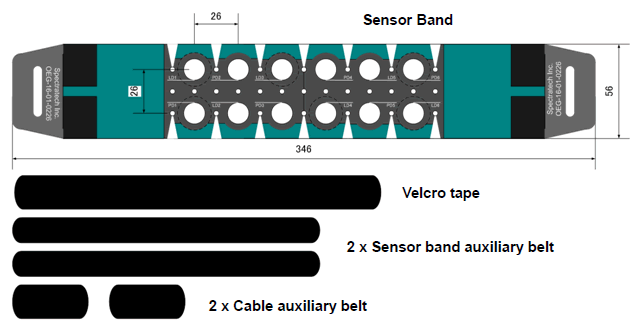

Spectratech OEG-16-01-0226 Sensor Band 26mm type
It is a sensor band in which distance between light-emitting part and light-receiving part is 26mm.
Spectratech OEG-16-01-0601 Sensor Band Self-made Kit
It is the same as the material used for SpectratechOEG-16-01-02. The hole for the sensor adaptor can be easily made at optional positions with the included belt punch. Please order Spectratech OEG-16-01-06 Sensor adaptor and Spectratech OEG-16-01-0101 Velcro tape kit together.

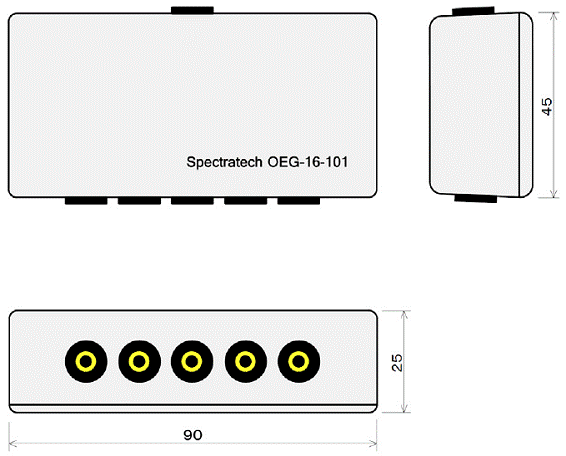

Spectratech OEG-16-101 Trigger Distributor 1IN5OUT
Five connection cables (3m each) are included.

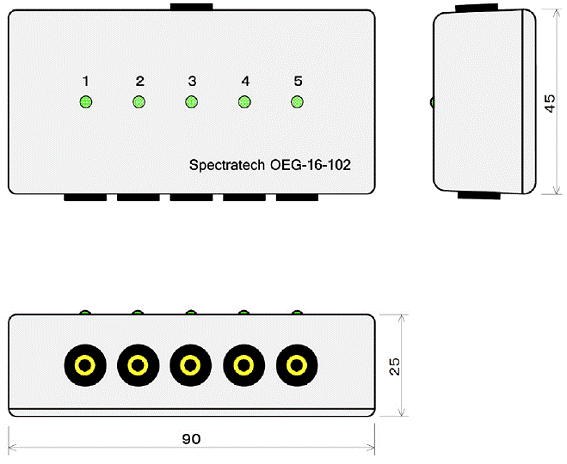

Spectratech OEG-16-102 Event Distributor 1IN5OUT
Five connection cables (3m each) are included.

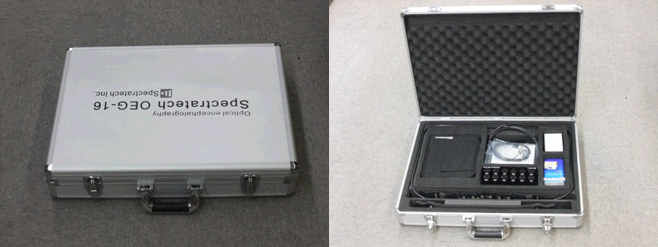

Spectratech OEG-16-201 Carrying case
It can house OEG-16 Main unit and the included accessories in order. It is convenient when keeping or moving.
Dimension: 605 (W) x 115 (H) x 455 (D) mm
Weight: Approx. 3.9Kg
