Synchronous operation of multiple OEG-SpO2 equipments with external event input

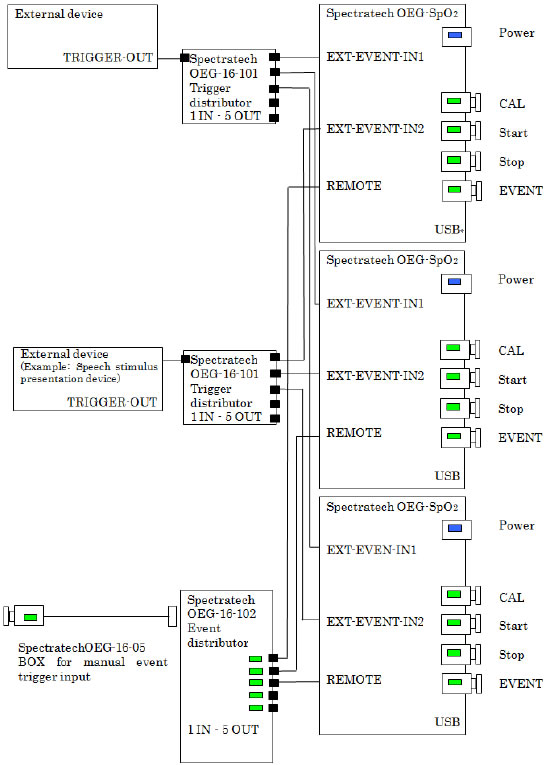

When multiple OEG-SpO2’s operate with one Trigger factor/Event factor, the following connection is possible using the optional Spectratech OEG-16-101 and Spectratech OEG-16-102. Though the figure below shows a simultaneous connection diagram for up to 5 sets, the operation by six or more sets is also possible with the cascade connection of Spectratech OEG-16-101 and 102.
