Sensor palette

Various sensor palettes are prepared. You may select it for your measurement purpose.

1) Spectratech OEG-17APD-01-02 Sensor palette Type 2x6

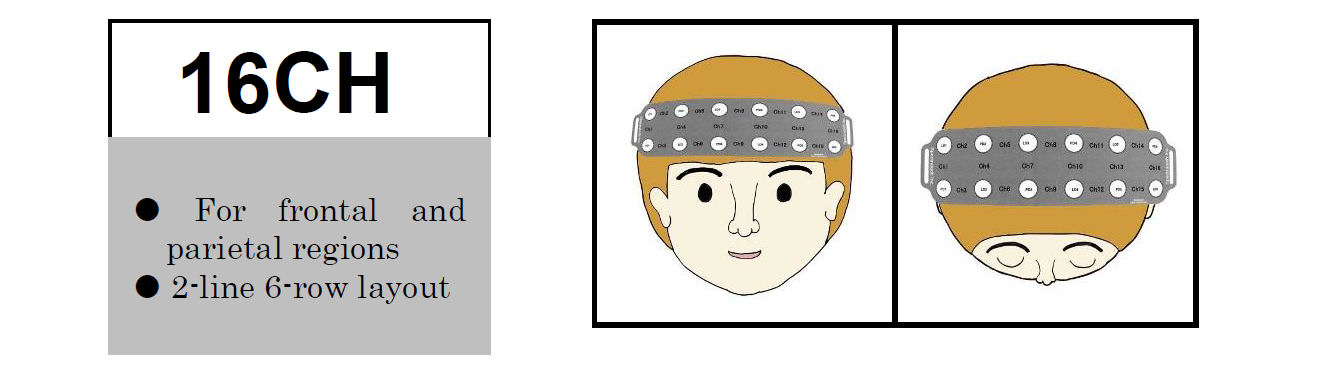

16 CH by 2 lines 6 rows for measuring frontal and parietal regions
2) Spectratech OEG-17APD-01-01-03 Sensor palette Type 3x4W cloth L

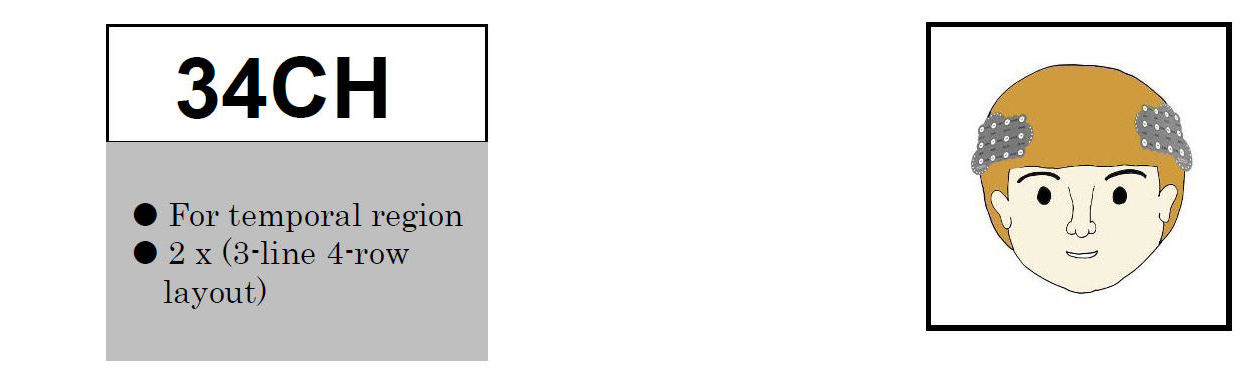

34 CH by 3 lines 4 rows for measuring temporal region
3) Spectratech OEG-17APD-01-11-03 Sensor palette Type Multiple L
53 CH by Multiple
4) Spectratech OEG-17APD-01-05-03 Sensor palette Type 3x12 cloth L

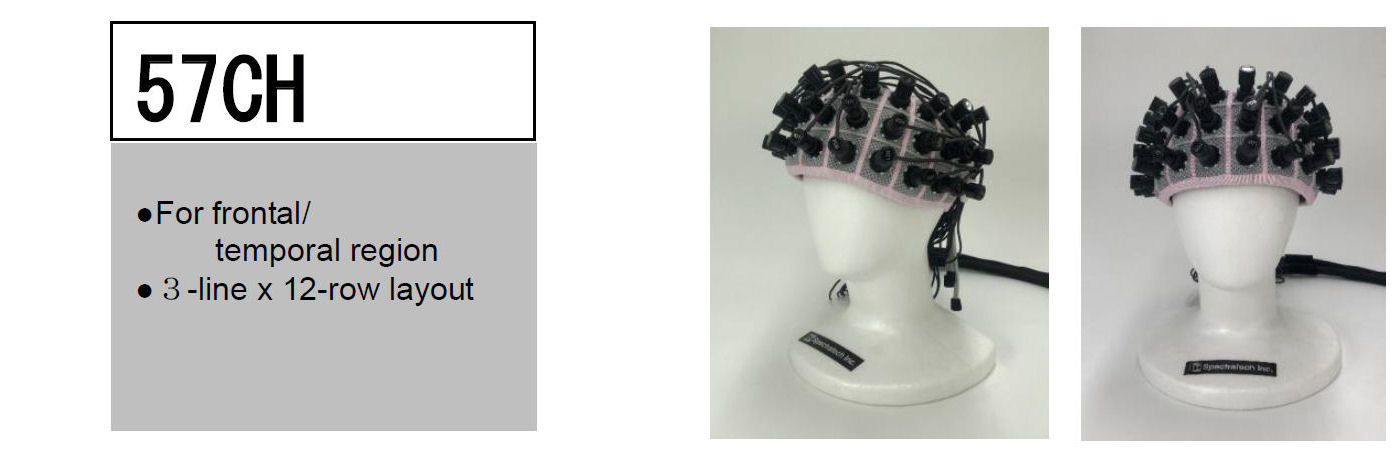

57 CH by 3 x 12 rows for measuring frontal/temporal region

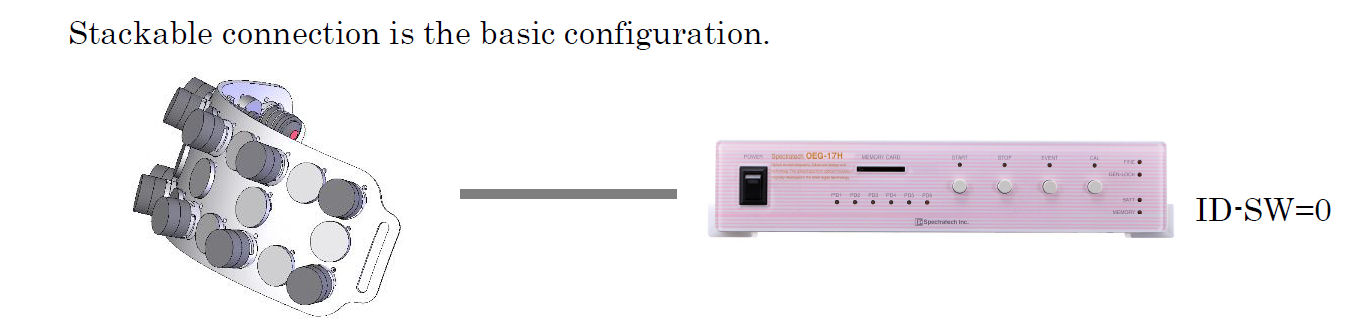

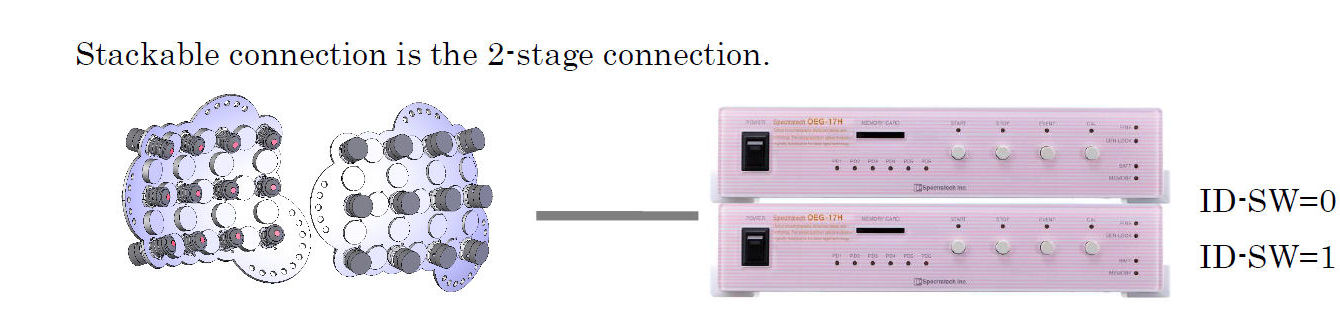

You may need to expand Spectratech OEG-17H according to the sensor palettes you will select to use. The expanding connection is called the stackable connection.



1) Spectratech OEG-17APD-01-02 Sensor palette Type 2x6

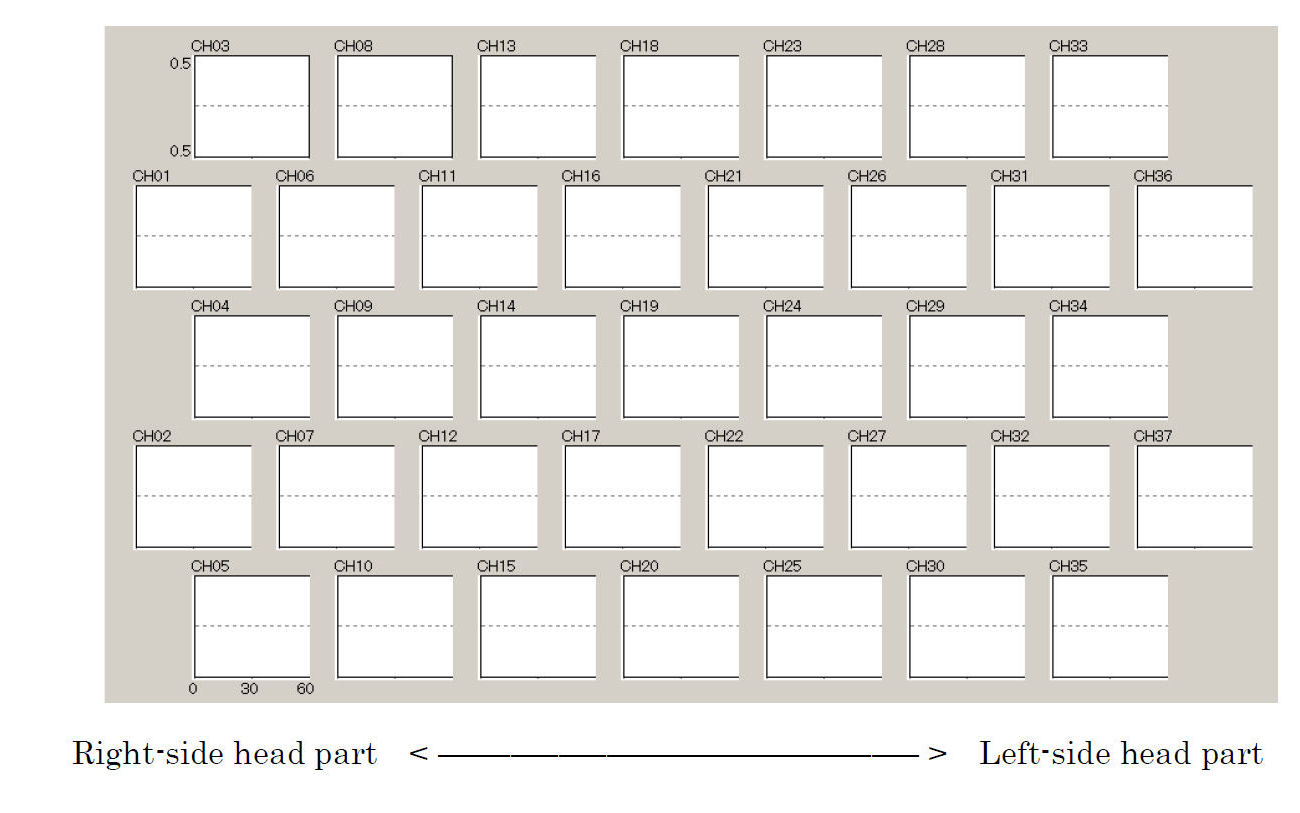

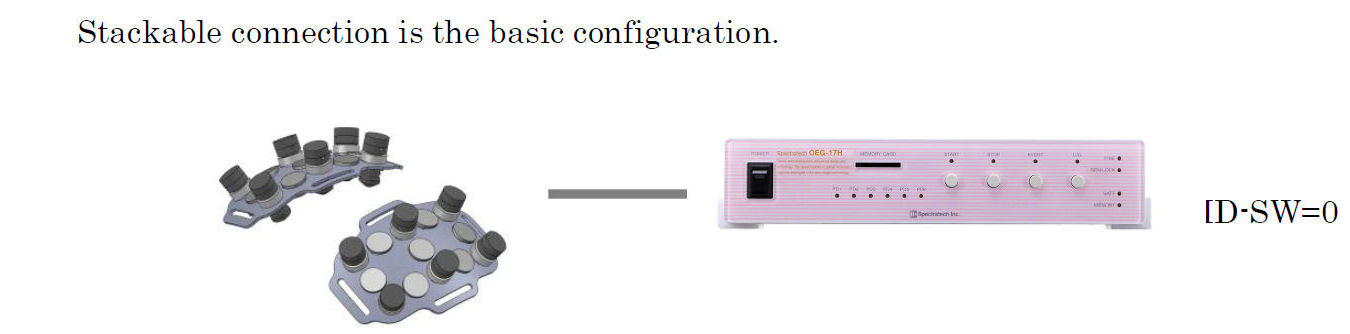

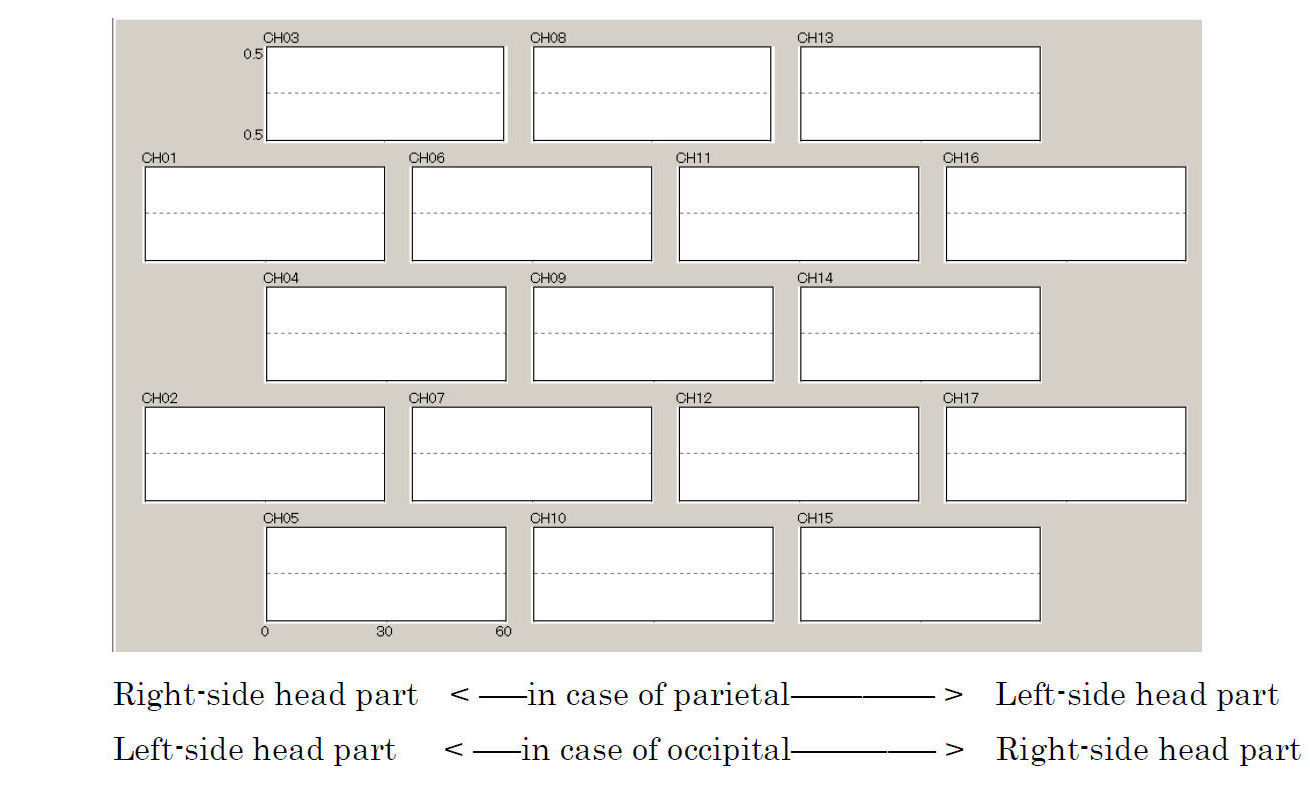

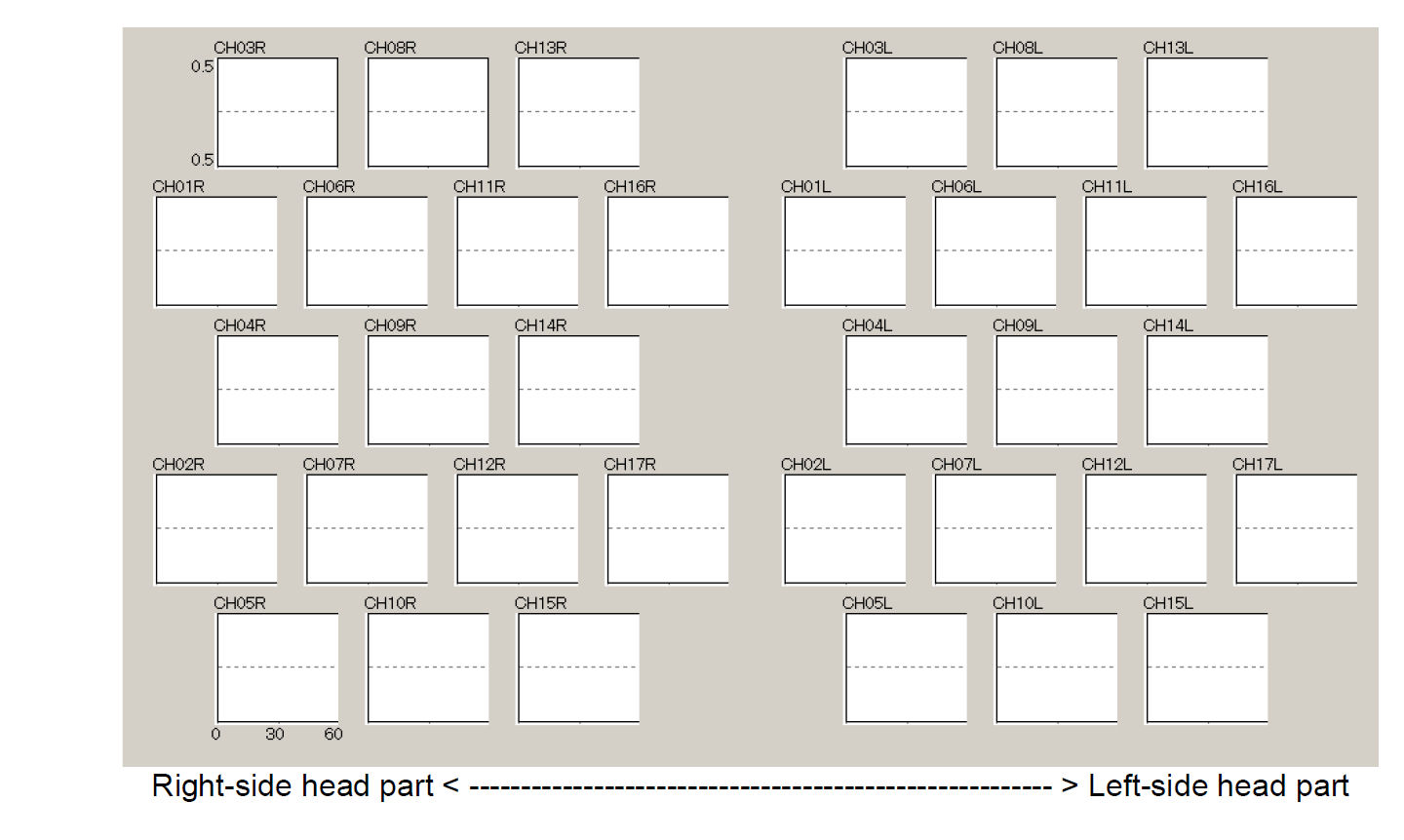

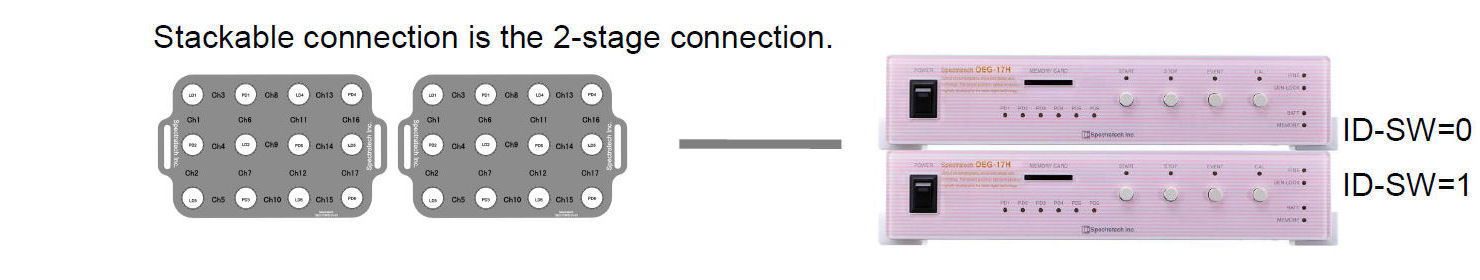

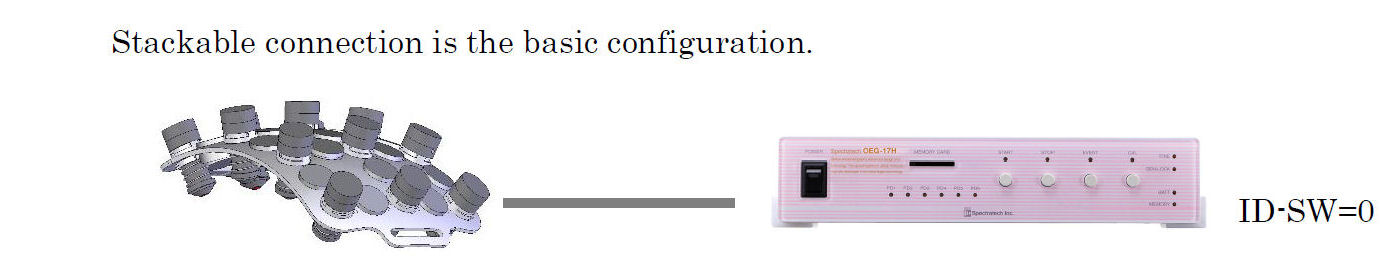

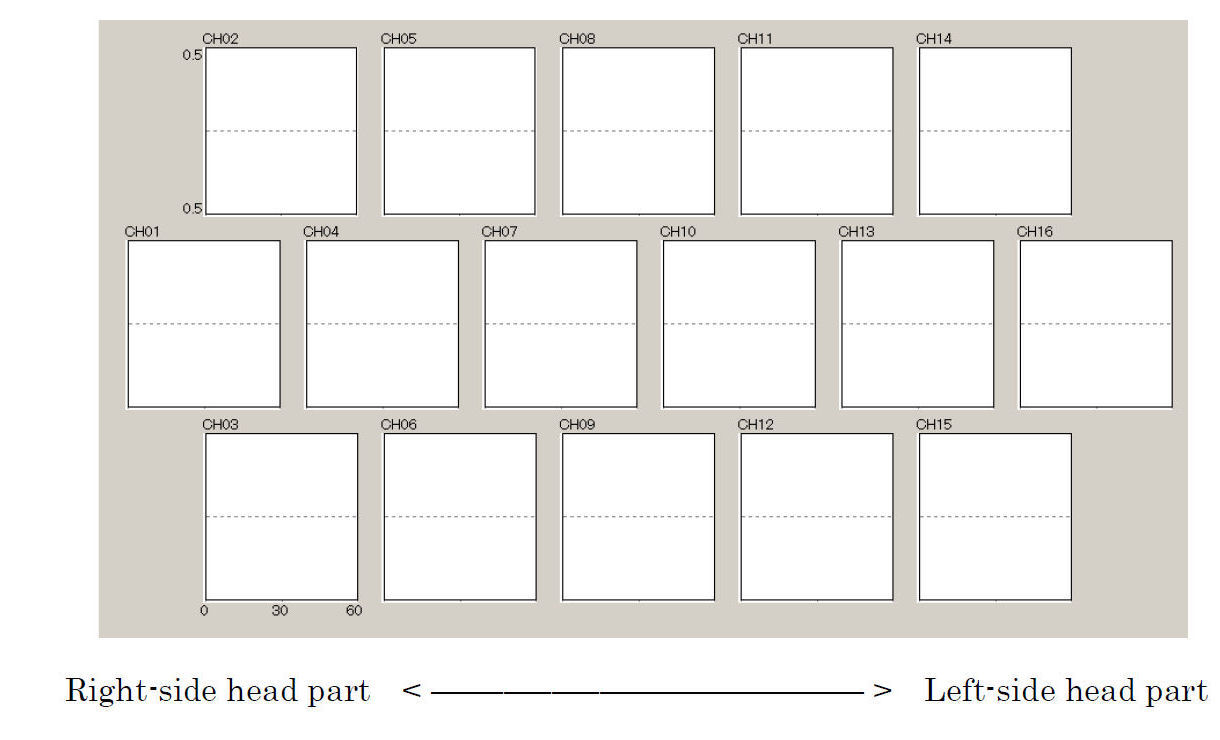

Sensor palette Type 2x6 chart Stackable connection

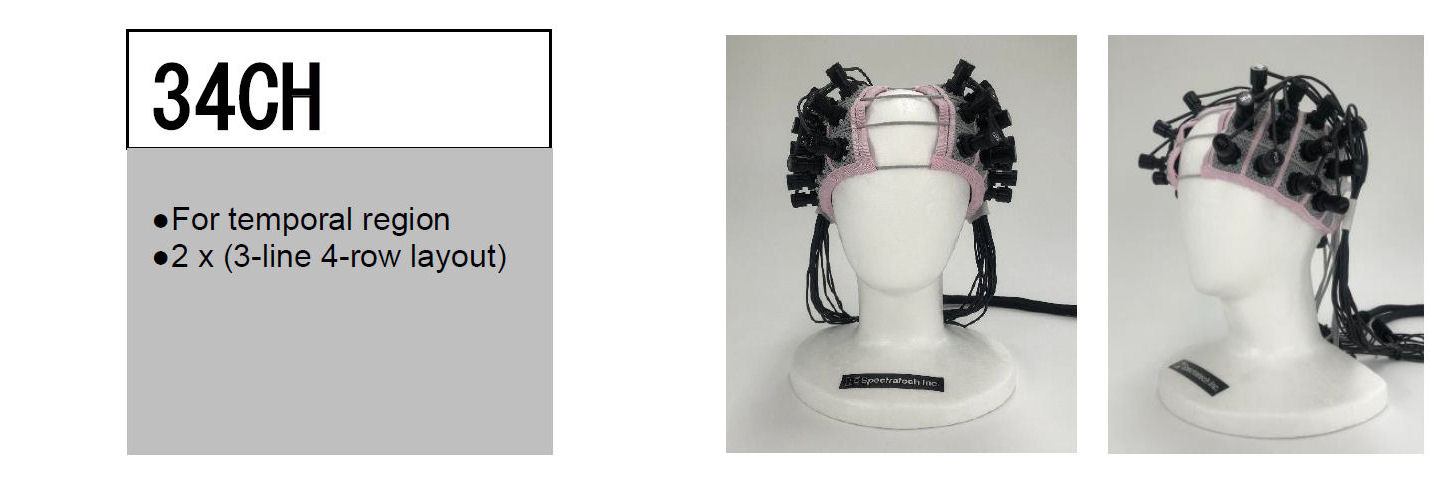

2) Spectratech OEG-17APD-01-01-03 Sensor palette Type 3x4W cloth L

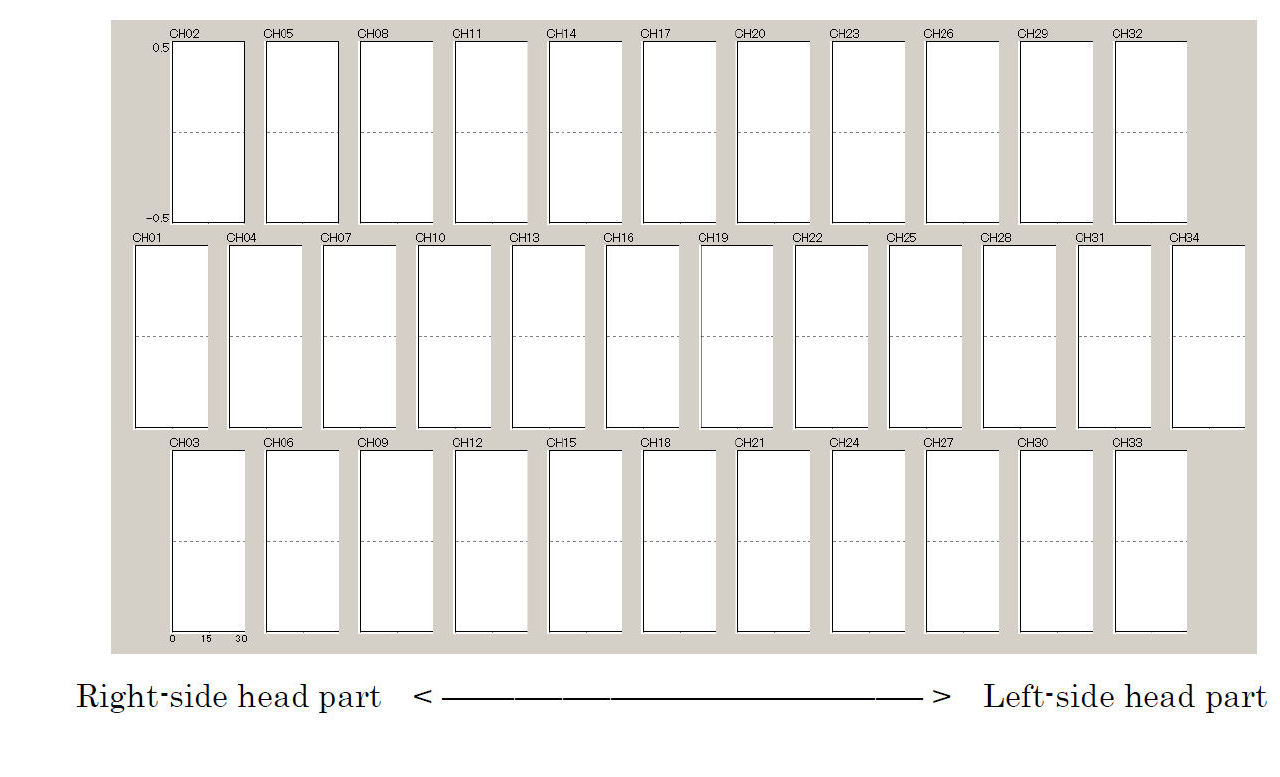

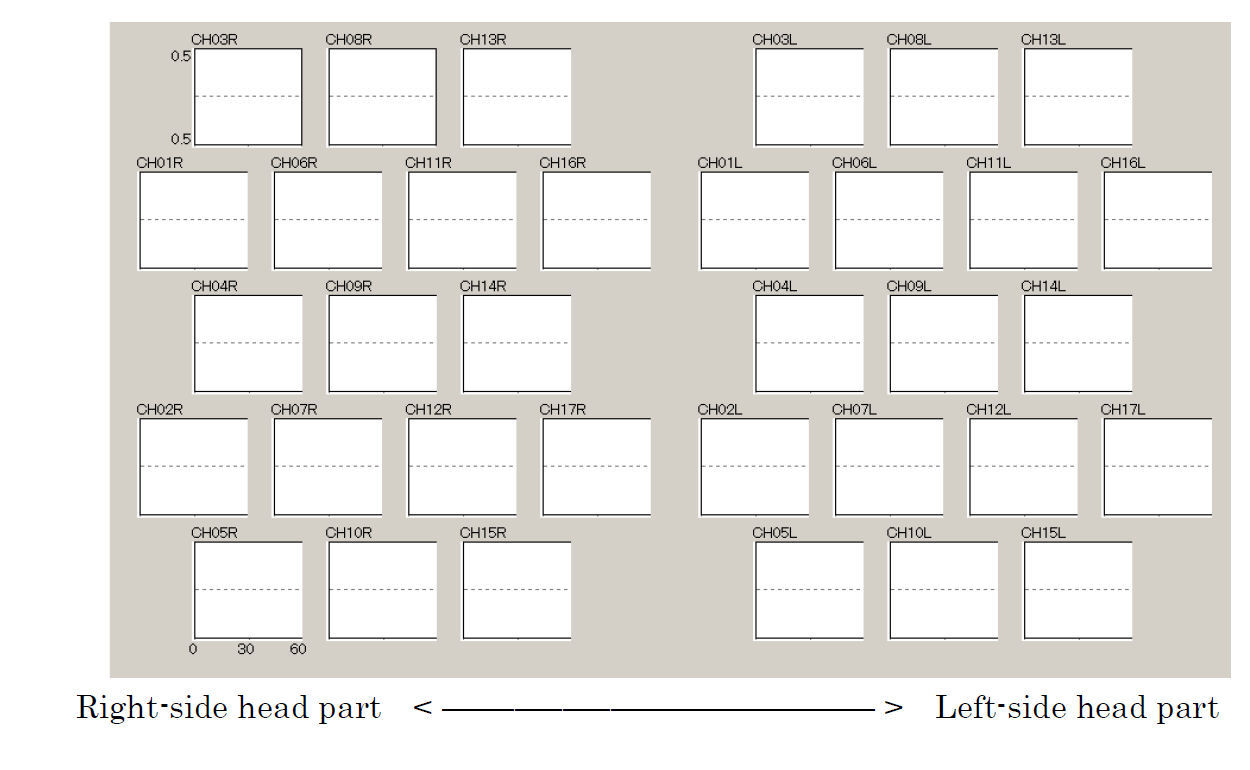

Sensor palette Type 3x4W cloth S, L chart Stackable connection

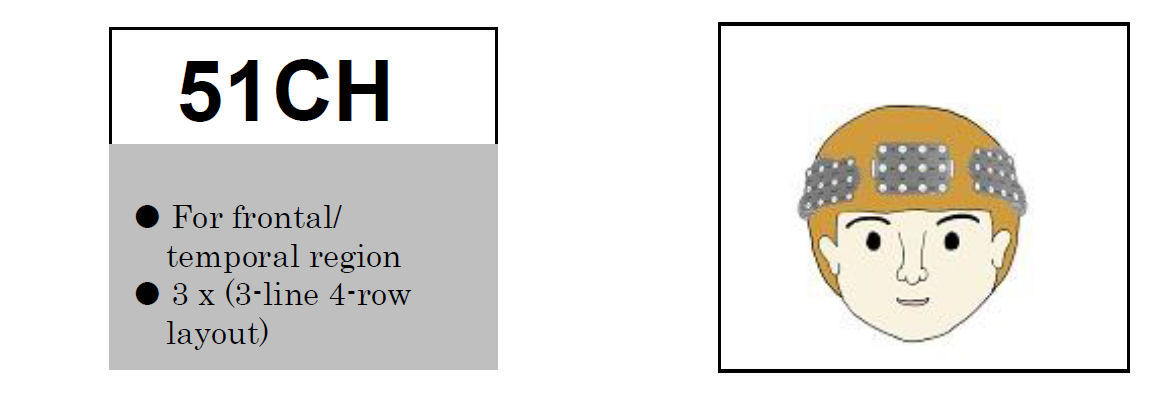

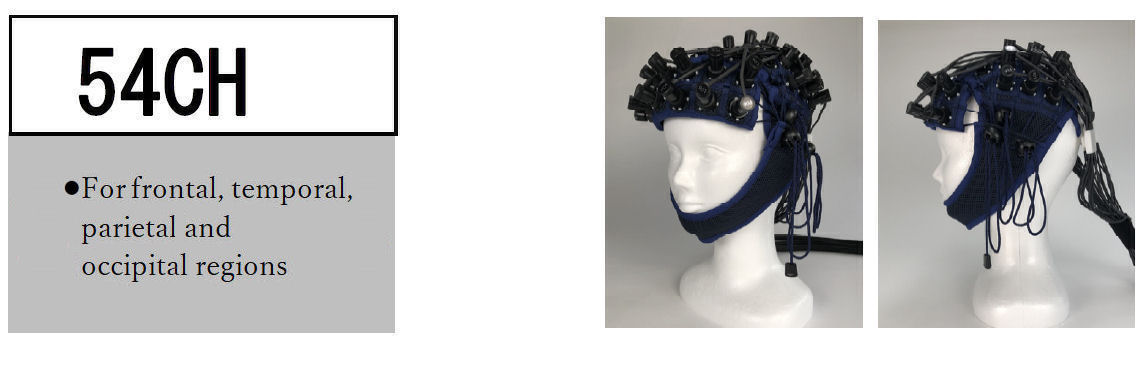

3) Spectratech OEG-17APD-01-11-03 Sensor palette Type Multiple L

OEG-17APD-01-11-02 Sensor palette Type Multiple L

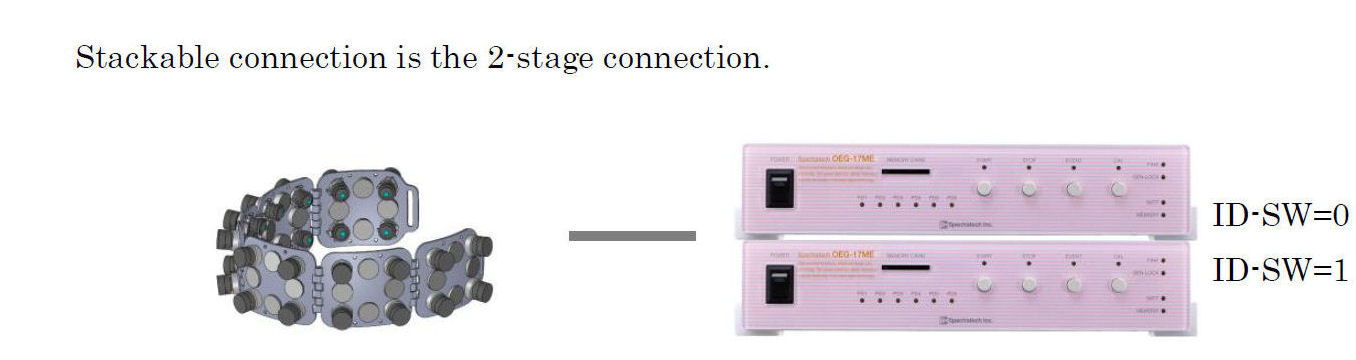

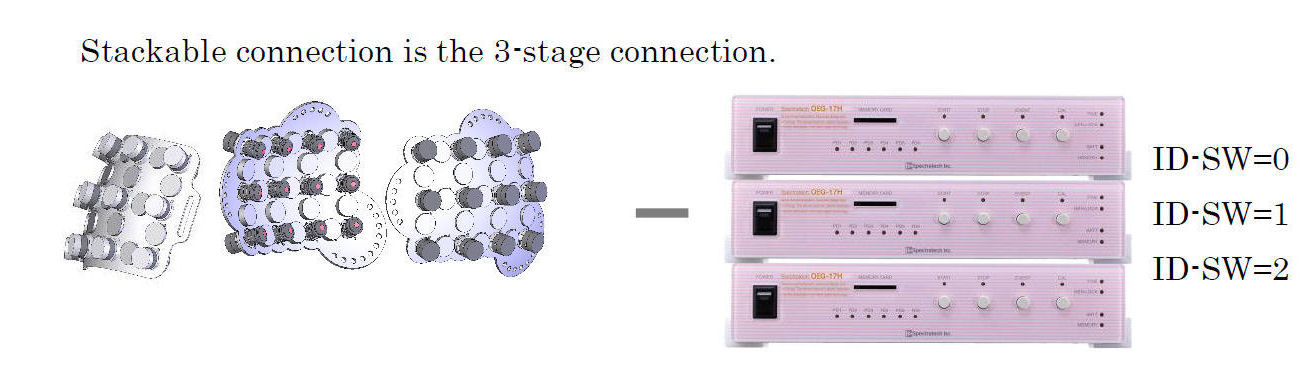

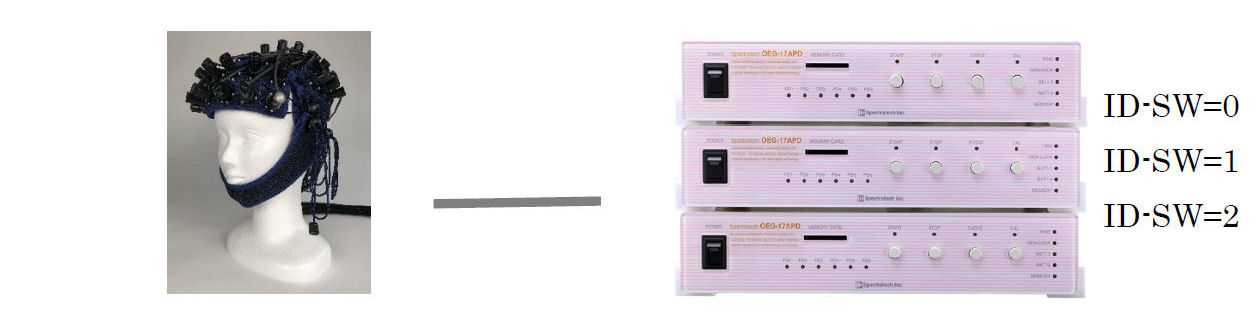

Stackable connection is the 1 to 3 stage connection.

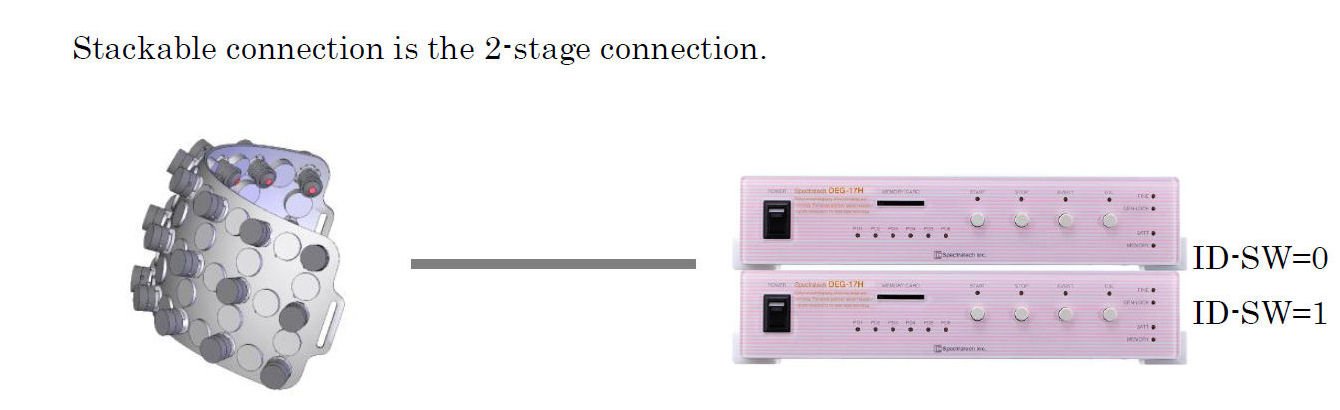

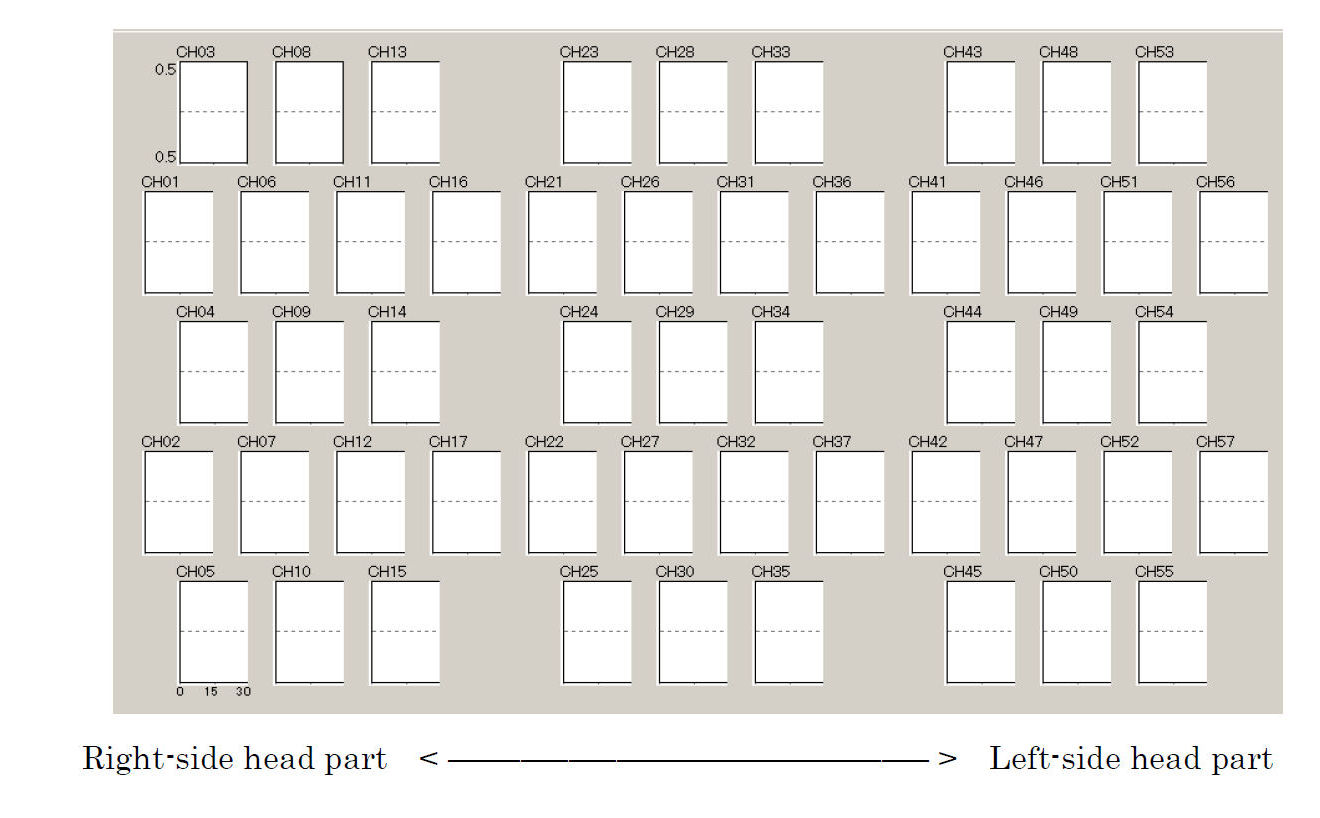

OEG-17APD-01-11-02 Stackable connection

You can use the following configurations. (Example of combination)

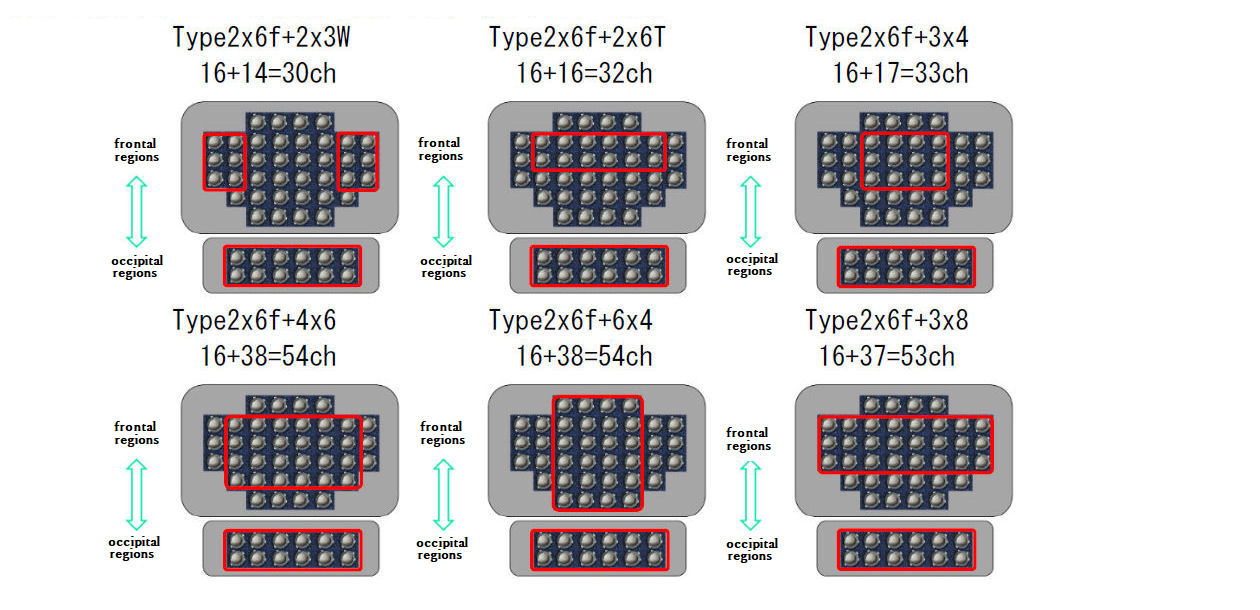

OEG-17APD-01-11-02 Example of combination



4) Spectratech OEG-17APD-01-05-03 Sensor palette Type3x12 cloth L

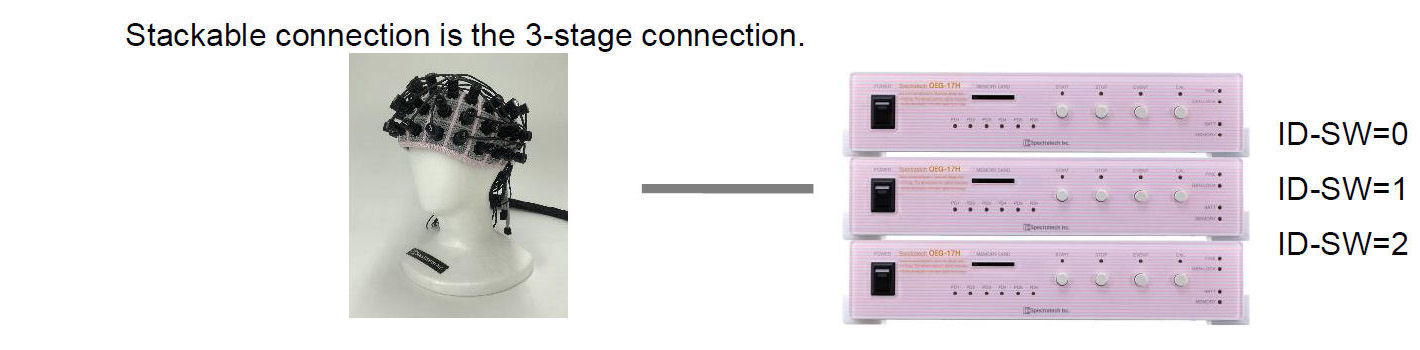

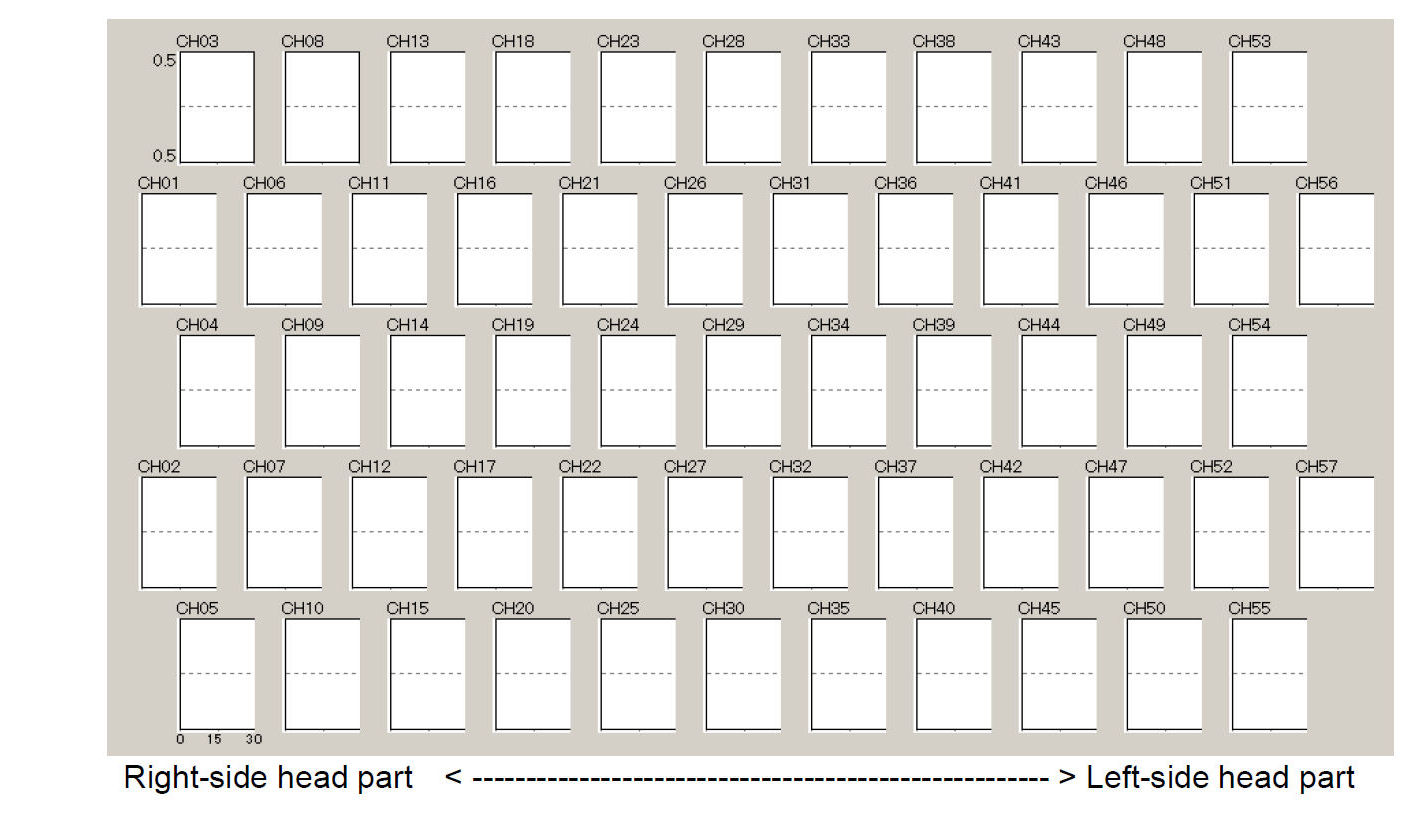

Sensor palette Type3x12 cloth S, L chart Stackable connection

You can use the following configurations. (Example of combination)

Type3x12
57ch
Type3x4W
34ch
Type3x12 57ch Type3x4W 34ch

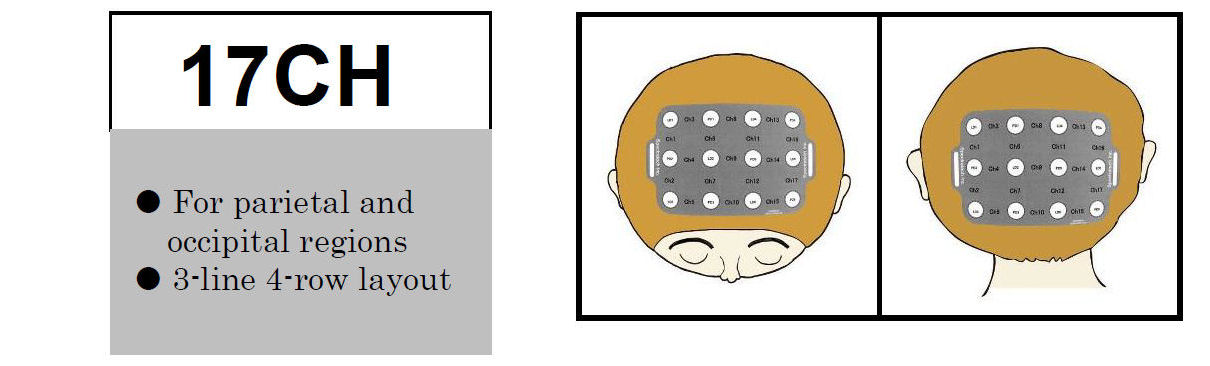

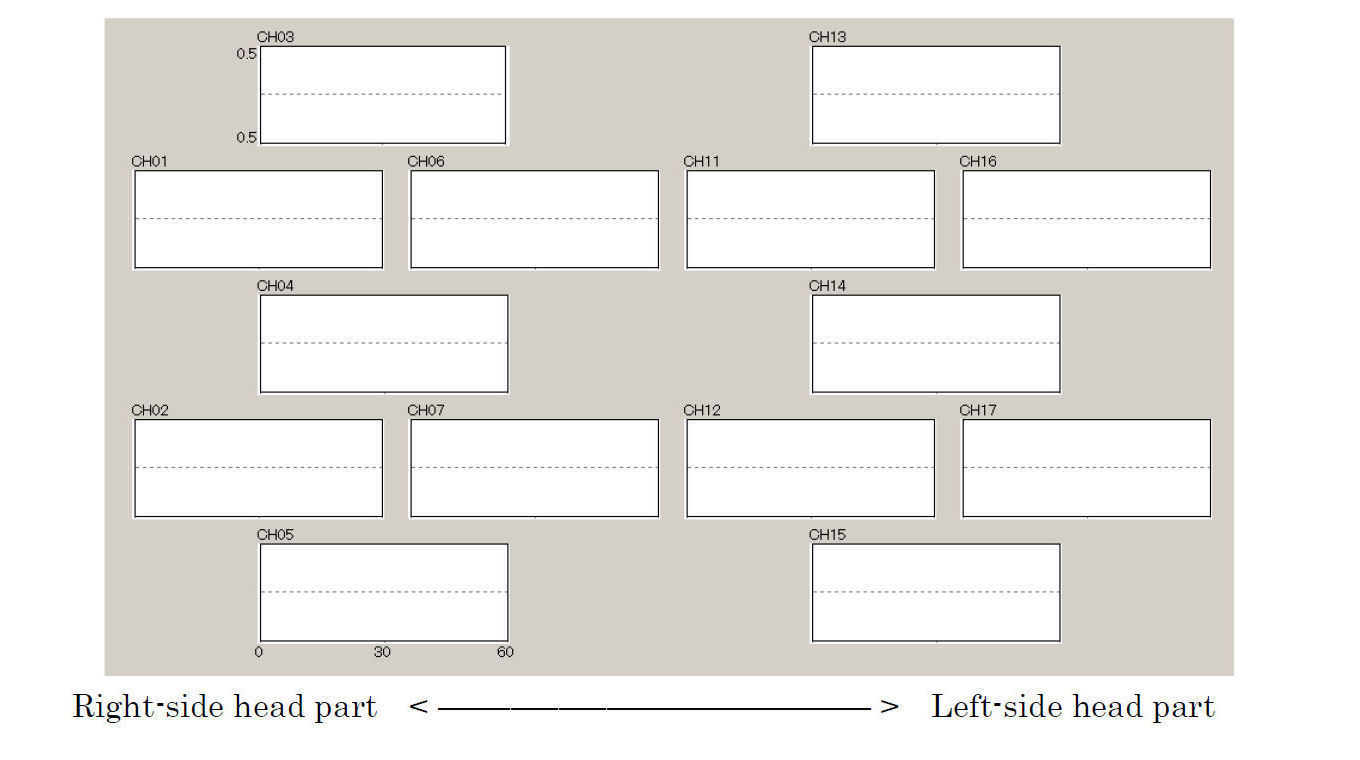

Type3x4
17ch

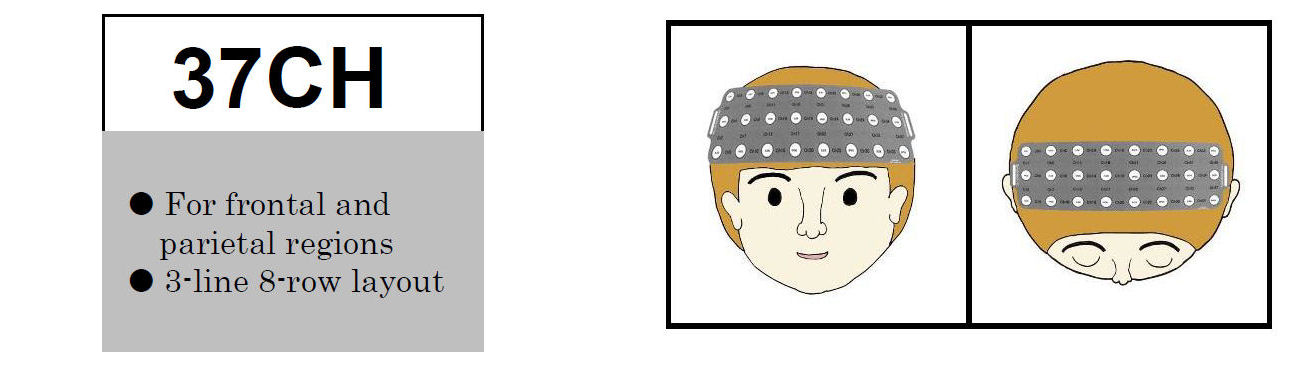

Type3x8
37ch
Type3x4 17ch Type3x8 37ch
Type2x6
16ch

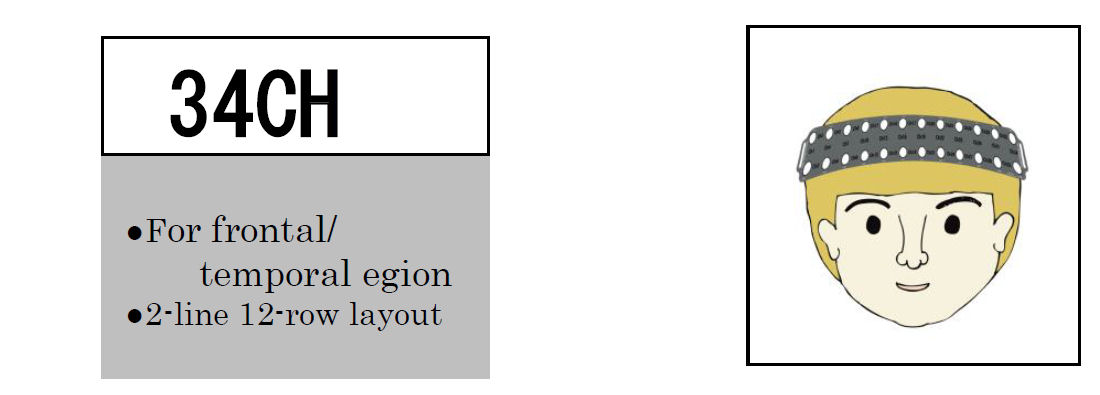

Type2x12
34ch
Type2x6 16ch Type2x12 34ch

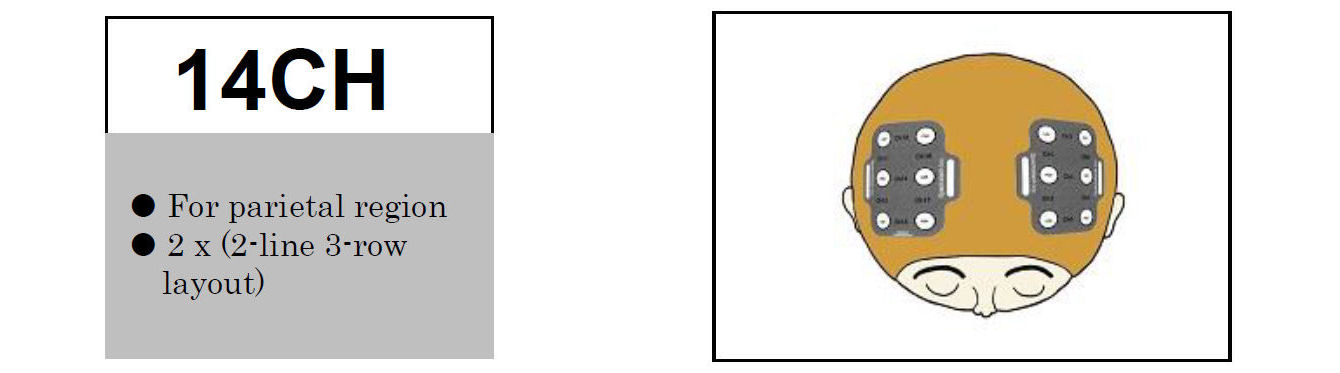

Type2x3W
14ch
Type2x3W
14ch
Type2x3W 14ch Type2x3W 14ch
